Pressure Gauges

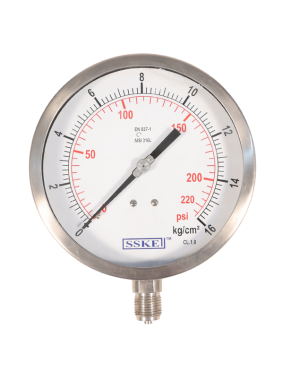

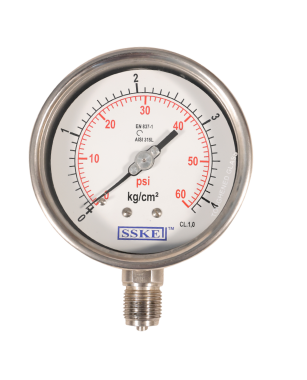

SS PRECISION PG MODEL- SSKE01
SS PRECISION PRESSURE GAUGE
Dial Size : DN100 / DN150 / DN250
Range : -1 to 0 , 0-1 to 0-1600 Bar
Accuracy : ±1% / CL 1
Mounting : 1/2"-BSP / NPT Bottom / Lower Back / Center Back
Ingress Protection : IP68
Execution : Fillable / Dry / Filled
Bourdon Tube & Socket : SS316L / MONEL -TIG WELDED
READ MORE Enquire now

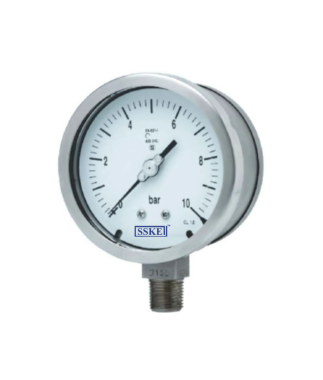

ALL SS PG - GENERAL
MODEL- SSKE02
Dial Size : DN50 / DN63 / DN80 / DN100
Range : -1 to 0 , 0-1 to 0-1000 Bar
Accuracy : ±1.6% / CL 1.6
Mounting : 1/4" BSP / NPT Bottom / Center Back
Ingress Protection : IP65
Execution : Fillable / Dry / Filled
Bourdon Tube & Socket : SS316- TIG WELDED / 2 PC TYPE
READ MORE Enquire now
SS SOLID FRONT SAFETY PG
MODEL- SSKE03
Dial Size : DN100 / DN150
Range : -1 to 0 , 0-1 to 0-1600 Bar
Accuracy : ±1% / CL 1
Mounting : 1/2"-BSP / NPT Bottom / Lower Back
Ingress Protection : IP68
Execution : Fillable / Dry / Filled
Bourdon Tube & Socket : SS316L / MONEL -TIG WELDING
READ MORE Enquire now

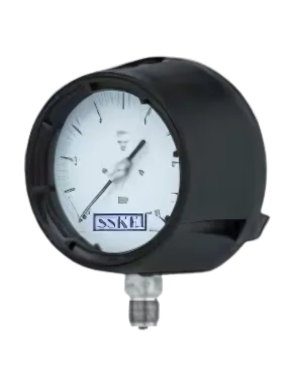

PHENOL CASE SOLID FRONT PG
MODEL- SSKE04
Dial Size : DN115
Range : -1 to 0 , 0-1 to 0-1600 Bar
Accur. & Repeatability : ±0.5% / CL 0.5
Mounting : 1/2"-BSP / NPT Bottom / Lower Back
Ingress Protection : IP68
Execution : Dry
Bourdon Tube & Socket : SS316L / MONEL -TIG
Case & Bezel : PHENOLIC / PBPT
READ MORE Enquire now
SS BRASS PG- GENERAL PURPOSE
MODEL- SSKE05-01
Dial Size : DN50 / DN63 / DN80 / DN100
Range : -1 to 0 , 0-1 to 0-40 Bar
Accuracy : ±2.5% / CL 2.5
Mounting : 1/8" , 1/4" BSP / NPT Bottom / Center Back
Ingress Protection : IP65
Execution : Fillable / Dry / Filled
Bourdon Tube & Socket : Copper Alloy
READ MORE Enquire now

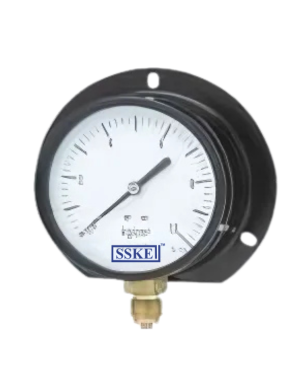

ALL STEEL CASE PG - GEN. PURPOSE
MODEL - SSKE05-02
Dial Size : N40 / DN50 / DN63 / DN100 / DN150 / DN250
Range : -1 to 0 , 0-1 to 0-400 Bar
Accuracy : ±2.5% / CL 2.5
Mounting : 1/8'' / 1/4" / 3/8" / 1/2" BSP / NPT (M) Bottom / Center Back
Ingress Protection : IP54
Execution : Dry
Bourdon Tube & Socket : Copper Alloy
Case & Bezel : Steel black powder coated
READ MORE Enquire now

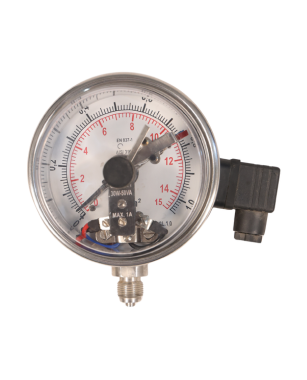

ALL SS PG ELECTRIC CONTACT TYPE DOME STYLE
MODEL- SSKE06
Dial Size : DN100 / DN150
Range : -1 to 0 , 0-1 to 0-1600 Bar
Accuracy : ± 1% / CL 1 , Reference Standard : EN837-1
Mounting : 1/4" / 3/8" / 1/2"-BSP / NPT and special Threads Bottom / Lower Back with Doom type window
Ingress Protection : IP68
Execution : Dry / Fillable / Filled
Electric Contact : Magnetic / Inductive Contacts, NO, NC, NO NC, NC NO, NO NO, NC NC
Bourdon Tube & Socket : SS316L / Monel -TIG WELDING
READ MORE Enquire now
ALL SS PG, ELECTRIC CONTACT TYPE HI-VERSION CASE
MODEL-SSKE07
Dial Size : DN100 / DN150
Range : -1 to 0 , 0-1 to 0-1600 Bar
Accuracy : ±1% / CL 1.0 - Reference Standard : EN837-1
Mounting : 1/4" / 3/8" / 1/2"-BSP / NPT and special Threads Bottom / Lower Back with standard safety glass window
Ingress Protection : IP65
Execution : Dry / Fillable
Electric Contact : Magnetic / Inductive Contacts, NO / NC, NO NO, NC NC
Bourdon Tube & Socket : SS316L -TIG WELDING
READ MORE Enquire now

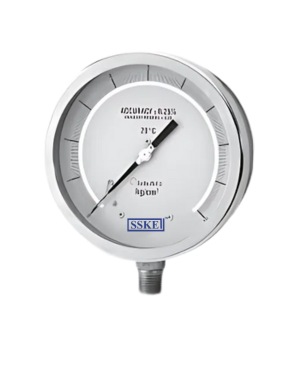

SS CASE TEST GAUGE (ACC. ±0.25%)
MODEL- SSKE08
Dial Size : DN150 / DN250 / DN300
Range : -1 to 0 , 0-1 to 0-1600 Bar, Reference Standard : EN837-1
Accuracy : ±0.25% / CL 0.25
Movement : Jewel Bearing
Mounting : 1/2"-BSP / NPT Bottom / Lower Back
Ingress Protection : IP68
Execution : Dry
Bourdon Tube & Socket : Berrlium Copper & SS316L / Copper alloy
Case & Bezel : SS304 / Steel Case Powder coated
Note : Dial with anti parallax mirror band, Knife Edge Micro Adju. Pointer
READ MORE Enquire now

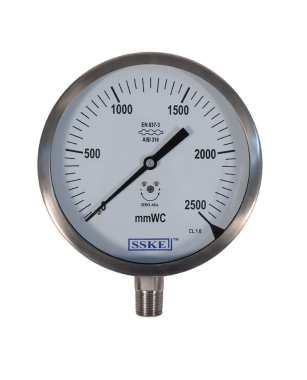

ALL SS PG, SS CAPSULE TYPE
MODEL-SSKE09-01
Dial Size : DN63 / DN100 / DN150 / DN250 , Ref. Standard : EN837-3
Range : 6 mbar ….. 600mbar & Compound pressure ranges
Accuracy : ±1.6% / CL1.6 for SS Internal
Mounting : 1/4" / 3/8" / 1/2"-BSP / NPT and special Threads Bottom / Lower Back / Center Back
Ingress Protection : IP65
Execution : Dry / Fillable for Ranges above 100mbar
Capsule & Socket : SS316L
READ MORE Enquire now
SS CASE BRASS CAPSULES GAUGE
MODEL-SSKE09-02
Dial Size : DN63 / DN100 / DN150 / DN250 , Ref .Standard : EN837-3
Range : 6 mbar ….. 600mbar & Compound pressure ranges
Accuracy : ±1.6% / CL1.6 for Copper Alloy Internal
Mounting : 1/4" / 3/8" / 1/2"-BSP / NPT and special Threads Bottom / Lower Back / Center Back
Ingress Protection : IP65
Execution : Dry / Fillable for Ranges above 100mbar
Capsule & Socket : Copper Alloy
Case & Bezel : SS304 / SS316 / STEEL
READ MORE Enquire now

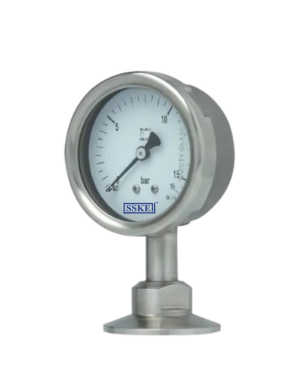

PRESSURE GAUGE WITH SS SANITARY
MODEL- SSKE10
Dial Size : DN50 / DN63 / DN100 / DN150
Range : -1 to 0 , 0-1 to 0-40 Bar
Accuracy : ±1.6% / CL 1.6 Ref. Standard : EN837-1
Mounting : 1/2''….. 2.5" Triclamp Type Bottom / Center Back
Ingress Protection : IP65
Execution : Fillable / Dry / Filled
Bourdon Tube & Socket : SS316 with SS Case and Bezel
Seal Filling Liquid : Food Grade Oil /Glycerin
READ MORE Enquire now

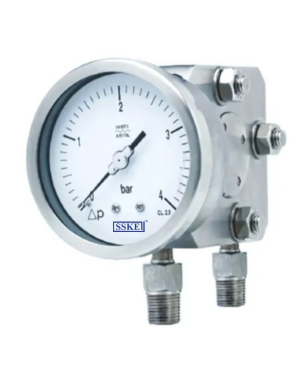

ALL SS DOUBLE DIAPHRAGM DIFFERENTIAL PG
MODEL- SSKE11
Dial Size : DN100 / DN150 Ref Standard : EN837-3, IS 3634
Range : 0-25mbar to 0-10 Bar
Accuracy : ±1 % / CL 1 - Acending
Mounting : 1/4",/3/8",/1/2"-BSP / NPT Bottom / Back
Ingress Protection : IP68
Execution : Filled / Fillable / Dry
Bourdon Tube & Socket : SS316L / Monel / special alloys
Case & Bezel, Gasket: SS304/316, Viton
READ MORE Enquire now

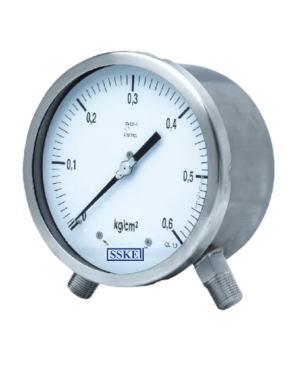

ALL SS DIFFERENTIAL PG SINGLE DIAPHRAGM TYPE
MODEL- SSKE12
Dial Size : DN100 / DN150
Range : 0-250 mbar to 10 bar
Accuracy : ± 1.0 % in Acending, Reference Standard : EN837-3
Mounting : 1/4" NPT (F) Bottom / Back
Ingress Protection : IP65
Execution : Fillable / Dry / Dry but fillable
Bourdon Tube & Socket : SS316L / Monel / special alloys
Case & Bezel, Gasket : SS304 / 316, Viton
READ MORE Enquire now
ALL SS DIFFERENTIAL PG - BELLOW TYPE
MODEL- SSKE13
Dial Size : DN150
Range : 0-100mbar to 0-16 Bar,
Accuracy : ±1% / CL 1 Acending
Mounting : 1/2"-BSP / NPT Bottom / Lower Back
Ingress Protection : IP65
Execution : Fillable / Dry / Dry but fillable
Body & Bellow : SS316L, Body & Bellow TIG Welded
READ MORE Enquire now

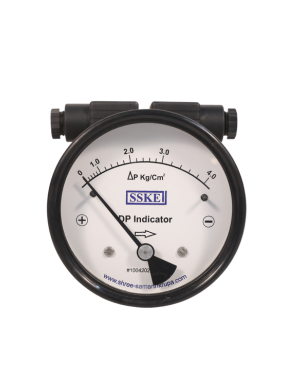

DIFFERENTIAL PG PISTON OPERATED
MODEL- SSKE14-01
Dial Size : DN63 / DN100 / DN150
Range : 0-250mbar to 0-10 Bar
Accuracy : ±2% / CL 2 - Ascending
Mounting : 1/4" NPT ( F) Inline / Bottom / Back Ports , Direct / Case 3 Hole Panel
Ingress Protection : IP65
Execution : Fillable / Dry Wetted
Wetted Parts : Body-SS316, Spring- SS302,Magnet-Ceramic, Seal - Teflon, Case -SS304, Diphragm - Viton, Piton-SS316L
READ MORE Enquire now

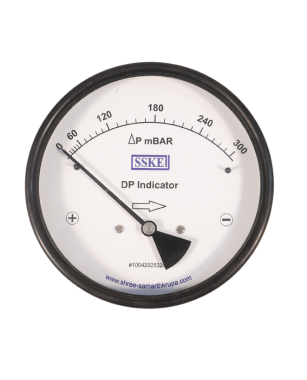

DIFFERENTIAL PG DIAPHRAGM ACTUATED PISTON
MODEL- SSKE14-02
Dial Size : DN63 / DN100 / DN150
Range : 0-250mbar to 0-10 Bar
Accuracy : ±2% / CL 2 - Ascending
Mounting : 1/4" NPT (F) Inline / Bottom / Back Ports
Ingress Protection : IP65
Execution : Fillable / Dry
Wetted Parts : Body-SS316, Spring- SS302,Magnet-Ceramic, Seal - Teflon, Diphragm - Viton, Piton-SS316L
READ MORE Enquire now

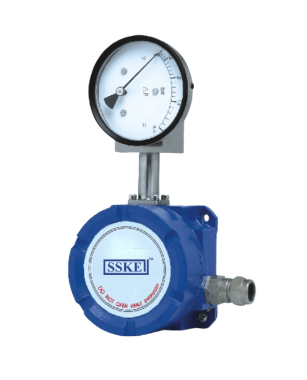

DIFFERENTIAL PG, DIAPHRAGM / PISTON ACTUATED WITH SWITCH
MODEL- SSKE14-03
Dial Size : DN63 / DN100 / DN150
Range : 0-250mbar to 0-10 Bar
Accuracy : ±2% / CL 2 - Ascending
Mounting : 1/4" NPT (F) Inline / Bottom / Back Ports , Case with integrated 3 Hole Panel
Ingress Protection : IP65
Execution : Fillable / Dry
Wetted Parts : Body-SS316, Spring- SS302,Magnet-Ceramic, Seal - Teflon, Diphragm -Viton, Piton-SS316L
Switching /Head : 1SPDT /2DPDT, 230VAC/0.5A
Head : ATEX & FM approved Ex class I, II & Ill NEMA 4X, IP66, IP67
READ MORE Enquire now

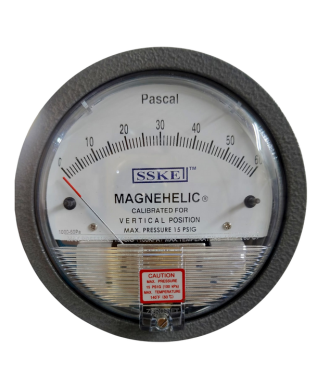

MAGNELIC DIFFERENTIAL PG, LOW PRESSURE
MODEL- SSKE15
Dial Size : DN100
Range : 0-5mmwc to 600 mmwc
Accuracy : ±2 % / CL 2 - Acending
Mounting : 1/8'' (F) BSP Side / Back
Ingress Protection : IP54
Execution : Dry
Case & Bezel : Die Cast Aluminum
Sensing Element : Silicon Rubber Diaphragm
READ MORE Enquire now

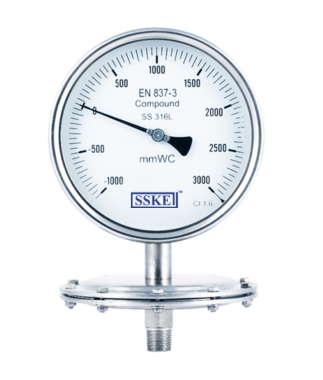

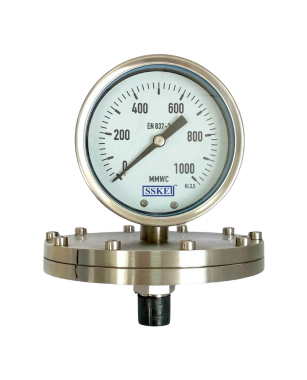

ALL SS PG, DIAPHRAGM TYPE, LOW PRESSURE
MODEL- SSKE16-01 (MACHINED FLANGE)
Dial Size : DN100 / DN150
Range : 0-250mmwc to 0-16 bar
Accuracy : ±1% / CL 1, Refer. Standard : EN837-3,
Mounting : 1/2"-BSP / NPTBottom / Center Back
Execution : Dry
Diaphragm : SS316 /Monel /Teflon /Inconel
Case & Bezel : SS304/316, - Shank & Case TIG welded
Note : This Model is suitable for PTFE Lining
READ MORE Enquire now
ALL SS PG,SCHAFFER DIAPHRAGM, LOW PRESSURE TYPE
MODEL- SSKE16-02
Dial Size : DN100 / DN150
Range : 0-250mmwc to 0-10 bar
Accu. & Repeatability : ±1% / CL 1 , Ref. Standard : EN837-3
Mounting : 1/2"-BSP / NPT Bottom
Ingress Protection : IP65
Execution : Dry
Diaphragm : SS316 /Teflon
Case & Bezel : SS304/316, - Shank & Case TIG welded
READ MORE Enquire now

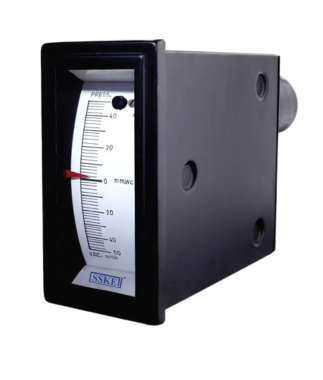

EDGE WISE DRAFT GAUGE
MODEL- SSKE17
Dial Size : DN150 X 78mm / DN 200X104 mm
Range : -6000 to +6000 mmwc
Accuracy : ±2.5 % / CL 2.5
Mounting : 1/4'' BSP (M) Center Back with Bracket
Ingress Protection : IP54
Execution : Dry
Bellow : SS316
Case & Bezel : Steel -Black Painted
READ MORE Enquire now

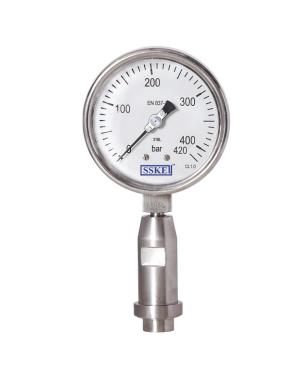

HOMOGENIZER PG
MODEL- SSKE18-01
Dial Size : DN100 / DN150
Range : 0-100 to 0-1000 Bar
Accu. & Repeatability : ±1.6% / CL 1.6 , Ref. Standard : EN837-1
Mounting : Mounting Flange, Threaded Conn, Direct Connection Bottom with standard seal / customised seal
Ingress Protection : IP65
Execution : Fillable / Dry Diaphragm
Bourdon Tube & Socket : SS316L - Tig Welded
READ MORE Enquire now

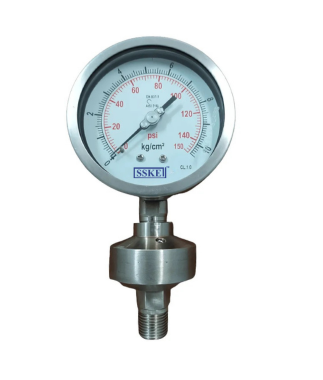

PG WITH ALL WELDED DIAPHRAGM SEAL GAUGE, THREADED
MODEL- SSKE18-02
Dial Size : DN100
Range : 0-5mmwc to 600 mmwc
Accuracy : ±2 % / CL 2 - Acending
Mounting : 1/4'' / 1/2'' / 3/8'' BSP (M) / (F) Side / Back
Ingress Protection : IP68
Execution : Dry / Fillable / Dry but Fillable
Sensing Element : Diaphragm, SS316 / Monel / Has-C
READ MORE Enquire now

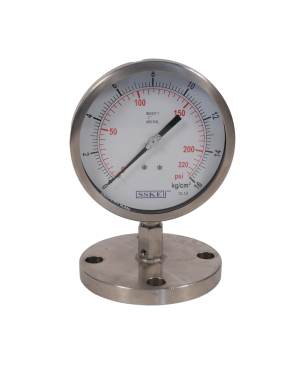

PG ALL WELDED DIAPHRAGM SEAL GAUGE, FLANGED
MODEL- SSKE18-03
Dial Size : DN100 / DN150, Reference Standard : EN837-1,
Range : -1 to 0 , 0-1 to 0-250 Bar
Accuracy : ±1.6% / CL 1.6
Mounting : 1/2'' BSP / NPT & Bottom / Center Back
Process Connection : Flange size & class, MOC : SS316/SS304/Monel
Ingress Protection : IP65
Execution : Fillable / Dry
Bourdon Tube & Socket : SS316
Seal Filling Liquid : Silicon Oil
Note : Fully Welded
READ MORE Enquire now
