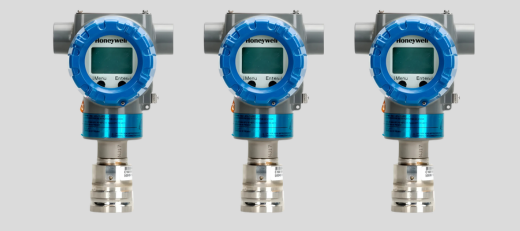

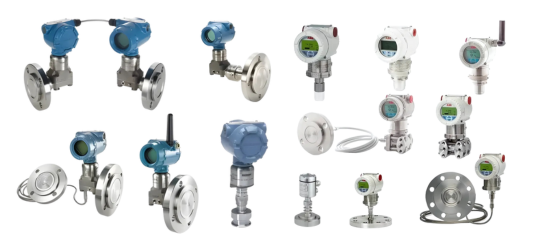

Smart Absolute / Gauge Pressure Transmitter

Product: Pressure Transmitter

Precision: 0.075% of Span for all ranges

Turn Down Ratio: 100:1 for all models

Stability: ±0.15% of URL

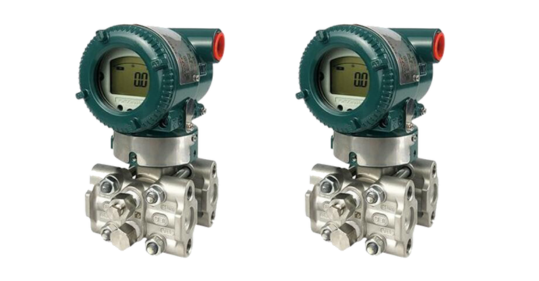

Differential Pressure Transmitter

Measuring Range: 200Pa-10MPa

Output signal: 4-20mA, 4~20mA/HART

Accuracy: ±0.075% URL, optional ±0.05% URL

Media temperature: -40-120℃

Power supply: 4~20mA two-wire, 10.5-55vdc 4~20mA+HART two-wire, 16.5-55vdc

Diaphragm material: SUS316L, Hastelloy C

Capillary / Direct Flanged Type DP / Level / Flow Transmitter

Measuring range: 4kPa-1MPa

Output signal: 4-20mA, 4~20mA/HART

Accuracy: ±0.2% URL, ±0.5% URL

Media temperature: -40-120℃

Diaphragm material: SUS316L, Hastelloy C

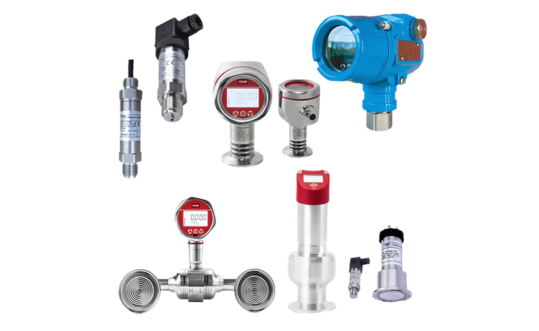

Miniature / Fixed Range Type – Flush Type / Diaphragm Type Pressure Transmitter

Product: Pressure Transmitter

Range: Vacuum To 2200 bar

Long-Term Drift: 0.25% FS/YR (non-cumulative)

Wetted Parts: 17-4 PH Stainless Steel

Supply Voltage: 8-30 V DC

Output(2-wire): 4-20 mA / 0-10 V /1 -5 V

Output signal: 4-20mA, 4-20mA+HART, 0-5VDC

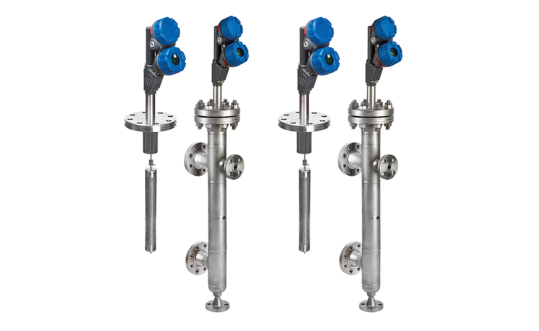

Displacer Level Transmitters

Model: Fisher, Liquid level, Specific, Gravity or Interface Level

Application: Liquide Level, Specific, Gravity, or Interface Level

Displacer Length: 100 mm to 4.5 Meters

Min. Differential Specific Gravity: 0.30 to 1.2 & 0.5

Accuracy: +/-0.5% of full scale (better on request)

Hazardous Area: ATEX, UL

Material Of Construction: Compatible Material of construction available for different process media. Can replace Fisher/ Masoneilin/ Yamatake/ Motoyama/ Parcol/ Eckard Transmitter, one-to-one…

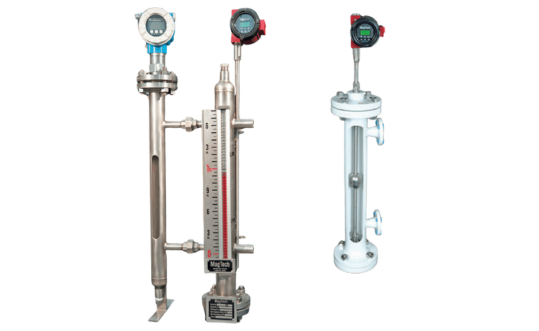

Magnetostrictive Float Type Level Gauge With Transmitter

Measuring Range(mm): 500-3500

Process Pressure: Max, 6O bar

Switch Rating: 250VAV12 ;2.5 A/220 V DC13; 0.3 A

Protection Enclosure: IP65

Features(Optional): Switches/Transmitter, ATEX, FM, UL

Output: 4-20 mA/ HART

Switch: SPDT, SPST, DPST

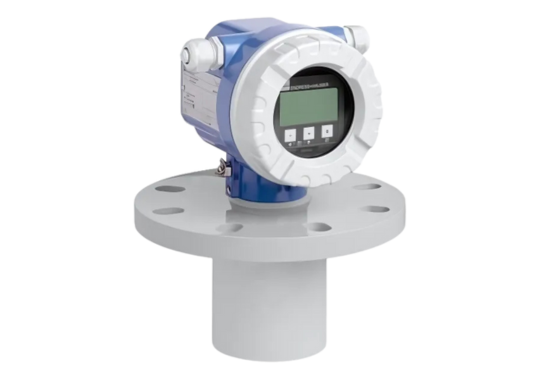

Ultrasonic Level Transmitter

Media: Liquid / Solid

Ledge: 0 to 25 Mtrs. for liquid/50 Mtrs. for Solid

Indicator: Digital Display

Working temperature: -40 to 70° C

Working pressure: -0.02 to 0.1 MPa

Output: 4 to 20 mA/HART

Power supply: 24 V DC ± 10%

Ex. Proof: Ex ia lib t6

Protection Grade: IP66

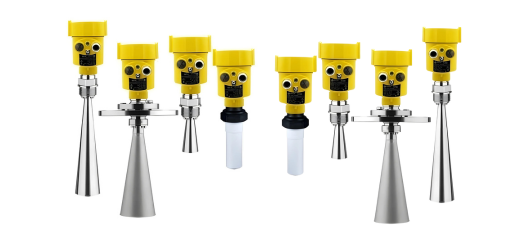

Non-contact Radar Level Transmitter

Suitable for Medium: Liquid, Granual

Measuring Range: 30 meters

Temperature: -40℃ ~ 250℃

Process Pressure: -0.1 ~ 0.3 MPa

Signal Output: (4 ~ 20) mA/HART

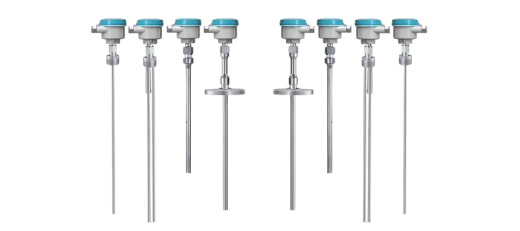

Guided Wave Radar Wired/Rigid Rod Level Transmitter

Measuring range – Distance: 75 m

Working temperature: -40 … 200 °C

Process pressure: -1 … 40 bar

Accuracy: ± 2 mm

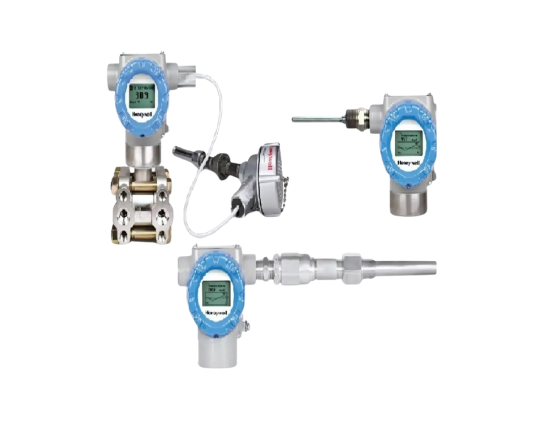

Smart Type Field Mounted With LCD Display Temperature Transmitters

Product: Smart Temperature Transmitter

Type: Field mounted

Material of Construction: Head Die-cast Aluminum/AISI 316 SS

Input: Thermocouple / RTD

Output: 4-20 mA HART

Zero/Span Adjustment: Potentiometer

Galvanic Isolation: 1500 VAC, 1 min

Accuracy: (±0.1%) of Span

Power Supply: 24 VDC

Hazardous Area: ATEX, UL

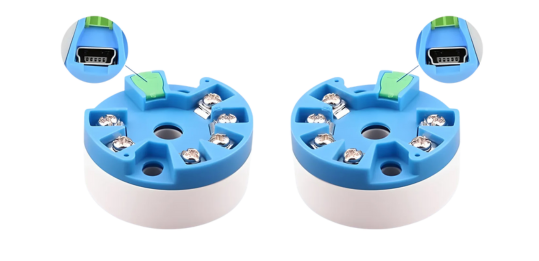

Head Mounted Type Temperature Transmitter

Designed for: RTD PT100 & Thermocouples (Universal input)

Output: Signal 4-20mA two wires

Configurable measuring ranges

Large ambient temperature range

Compact and inexpensive

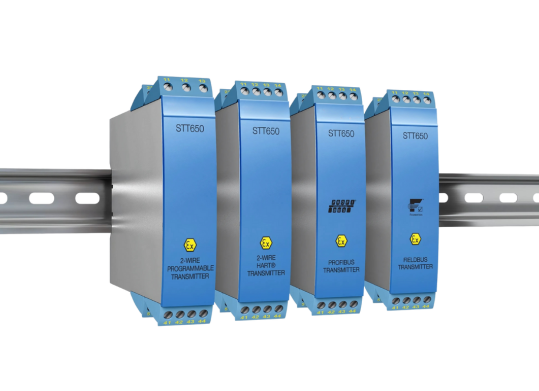

DIN Rail Mounted Temperature Transmitters

Sensor Range: -200 to 850 °C [18 to 390 Ω]

Minimum Span*¹ : 25 °C

Measurement Accuracy: ± 0.01 % FRI*³ ± 0.05 % rdg

Thermal Drift Zero: 0.008 °C/°C

Excitation Current: 300 to 550 µA

Span: 0.01 %/°C

Accuracy: (±0.1%) of Span

Maximum Lead Resistance: 50 Ω/leg

Lead Resistance Effect: 0.002°C/Ω

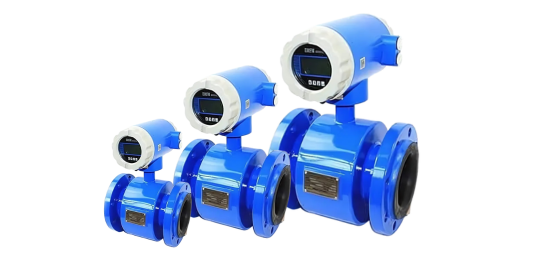

Electromagnetic flow meter– Inline / Battery Operated

Size: DN3-DN3000mm (1/8”~120”)

Accuracy: ±0.5% of reading,velocity >0.3 m/s

Velocity: 0.1-15 m/s

Signal Output: 4~20 mA, pulse HART

Power Supply: AC85~250V, DC20V~36V

Positive Displacement

Sizes: M-5®, M-7®, M-10®, M-15®, M-25®, M-30®, M-40®, M-60®, M-80®

Max Capacity: 800 GPM / 3,028 LPM (180 M3/hr)

Max Pressure: 150 PSI / 10.3 Bar / 1034 kPa

Max Viscosity: 30-1,500,000 SSU, or 1cP to 325,000cP

Temperature Range: -40°F to 160°F
