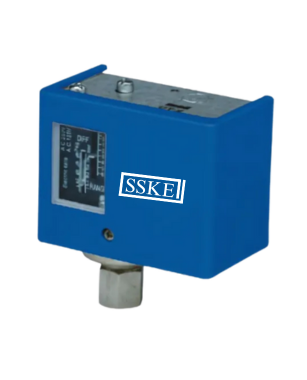

COMMERCIAL PRESSURE SWITCH GENERAL PURPOSE

MODEL- SSKE43-01

Accuracy : ± 1% / CL 1

Ranges : 3 …... 30 bar

Differential : 1.5 ….. 12 Bar

Mounting : 1/4" BSP (F), Bottom / Back Panel

Enclosure : Steel Body( Plated with Plastic Cover )

Sensing Element : PB Bellow

Ambient & Max. Process Temp. : -10 .. 60°C - 100°C

Switch Type & Rating : 1SPDT , 5A / 220 VAC/10A 24VDC - Micro Switch

Accessories : Mounting Bracket with bolt - Steel Plated

READ MORE Enquire now

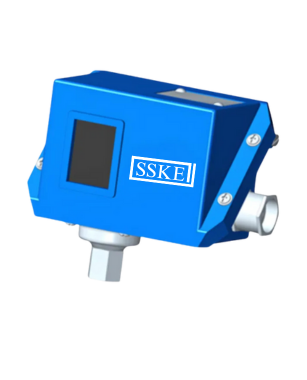

WEATHERPROOF PRESSURE SWITCH LOW PRESSURE SWITCH

MODEL-SSKE44-01

Accuracy : ± 1% / CL 1 , ±0.5% /CL 0.5, On Raising /On Falling

Ranges : 10mbar …..25 bar , -1…. 400mbar

Differential : 2mbar ….. 6 Bar

Mounting : 1/4" BSP(F), Bottom / Back Panel / 2"pipe Mounting Bracket

Enclosure : Die Cast Aluminium -Wheather Proof - IP68

Wetted Parts : Bottom Body , Diaphragm

Ambient & Max. Process Temp. : >-20 .. 65°C - 150°C

Switch Type & Rating : 1SPDT,2SPDT,DPDT, 5A / 250 VAC / 0.2A 24VDC Standard -Micro Switch with silver Contact.

Accessories : Mounting Bracket with bolt - Steel Plated /2'' Pipe mounting bracket

Options : 3/4 ET / 1/2'' NPT / DIN Conn/ 4pin / 7pin connectors Single / Double Compression Gland- Weather proof - Brass / SS

READ MORE Enquire now

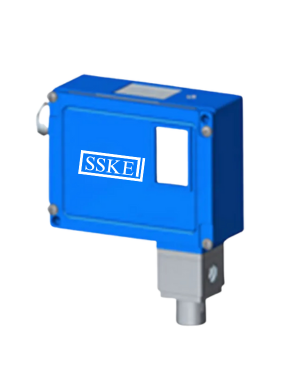

HIGH PRESSURE SWITCH

MODEL- SSKE44-02

Features : Fixed/Field Adjustable(External)/Differential Adjustment-External/Internal

Accuracy : ± 1% / CL 1 , ±0.5% /CL 0.5, On Raising /On Falling

Ranges : Ranges : Above 25 bar …... 250 bar

Differential : 0.1 …..25 Bar

Mounting : 1/4" BSP(F)-Standard, Bottom / Back Panel / 2"pipe Mounting Bracket

Enclosure : Die Cast Aluminium -Wheather Proof -IP68

Wetted Parts : Bottom Body ,Piston

MOC : SS316/ Monel / Inconel / PTFE

Ambient & Max. Process Temp. : -20 .. 65°C - 150°C

Switch Type & Rating : 1SPDT,2SPDT,DPDT, 5A / 250 VAC / 0.2A 24VDC -Standard : Micro Switch with silver contact

Accessories : Mounting Bracket with bolt - Steel Plated /2'' Pipe mounting bracket

READ MORE Enquire now

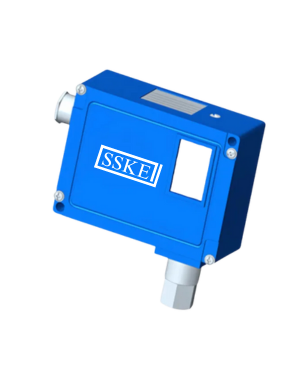

DIFFERENTIAL PRESSURE SWITCH HP/ LP PORT TYPE

MODEL-SSKE45-01

Accuracy : ± 1% / CL 1, ±0.5% /CL 0.5, On Raising / On Falling

Ranges : 10 mbar …... 25 bar

Differential : Fixed / Adjustable

Mounting : 1/4" BSP(F) - Standard, Bottom / Back Panel / 2"pipe Mounting Bracket

Enclosure : Die Cast Aluminium - Wheather Proof Design -IP68

Wetted Parts : Body, Diaphragm

MOC : SS316/ Monel / Inconel

Ambient & Max. Process Temp. : -20 .. 65°C - 150°C

Switch Type & Rating : 1SPDT,2SPDT,DPDT, 5A / 250 VAC / 0.2A 24VDC Standard : Micro Switch with silver contact

Accessories : Mounting Bracket with bolt - Steel Plated /2'' Pipe mounting bracket

READ MORE Enquire now

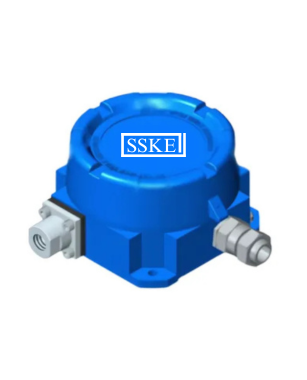

FLAME PROOF PRESSURE SWITCH LOW PRESSURE

MODEL- SSKE46-01

Accuracy : ± 1% / CL 1 , ±0.5% /CL 0.5, On Raising / On Falling

Ranges : 10 mbar …... 25 bar

Differential : Fixed / Adjustable

Mounting : 1/4" BSP(F) - Standard, Bottom / Back Panel / 2"pipe Mounting Bracket

Enclosure : Die Cast Aluminium - Flame Proof- IIA IIB IIC T6 ZONE 1 & 2

Wetted Parts : Bottom Body, Diaphragm

MOC : SS316/ Monel / Inconel / PTFE

Ambient & Max. Process Temp. : -20 .. 65°C - 150°C

Switch Type & Rating : 1SPDT,2SPDT,DPDT, 5A / 250 VAC / 0.2A 24VDC Standard : Micro Switch with silver contact

Accessories : Mounting Bracket with bolt - Steel Plated /2'' Pipe mounting bracket, Diaphragm Seal, Syphon, Snubber, Cooling Tower

Cable Entry : 3/4 ET / 1/2'' NPT Double Compression Gland- Flame Proof - Brass / SS

READ MORE Enquire now

FLAME PROOF PRESSURE SWITCH HIGH PRESSURE

MODEL- SSKE46-02

Accuracy : ± 1% / CL 1, ±0.5% /CL 0.5, On Raising /On Falling

Ranges : Above 25bar …... 250 bar

Differential : Fixed / Adjustable

Mounting : 1/4" BSP(F) - Standard, Bottom / Back Panel / 2"pipe Mounting Bracket

Enclosure : Die Cast Aluminium - Flame Proof- IIA IIB IIC T6 ZONE 1 & 2

Wetted Parts : Bottom Body, Piston

MOC : SS316/ Monel / Inconel / PTFE

Ambient & Max. Process Temp. : -20 .. 65°C - 150°C

Switch Type & Rating : 1SPDT,2SPDT,DPDT, 5A / 250 VAC / 0.2A 24VDC -Standard : Micro Switch with silver contact

Micro Switch : Low / High Dead Band, Hermetically /Environment Sealed /Gold Contact

Accessories : Mounting Bracket with bolt - Steel Plated /2'' Pipe mounting bracket, Diaphragm Seal, Syphon, Snubber, Cooling Tower

READ MORE Enquire now

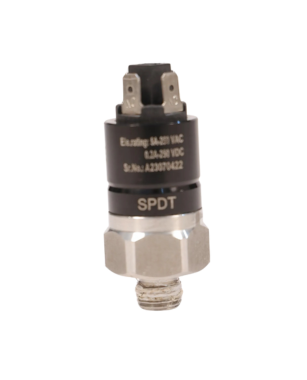

MINIATURE PRESSURE SWITCH

MODEL- SSKE49

Features : Fixed / Field Adjustable

Accuracy : ± 2% / CL 2%

Ranges : 1…..160 bar

Mounting : 1/4"BSP(M) , Bottom

Wetted Parts : Bottom Body , Diaphragm / Piston

MOC : SS304/SS316

Options : Option: 1/8" / 3/8" / 1/2"- BSP / NPT / MM

Ambient & Max. Process Temp. : -20 .. 150°C - 100°C

Switch Type & Rating : 1SPST, 5A / 220 VAC - Contact Type

Switch Type : NO / NC

READ MORE Enquire now
