Diaphragm Seals

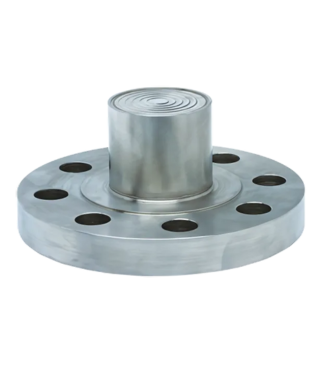

FLANGED DIAPHRAGM SEAL - FLANGE "I" SECTION TYPE
MODEL-SSKE19
Range : -1 - 0 to 0-21 bar / -1 - 0 to 0- 70 Bar / 0-100 to 0-400 bar
Top Chamber : SS316 / SS304
Instrument Connection : 1/4" / 1/2" - BSP / NPT (F)
Bottom Chamber : (pipe+flange+bottom ring) : SS316L/MONEL/PVC
Diaphragm : SS316L / Monel / Inconel / Hastelloy -C / PTFE / Tantalum
Sealing Gasket : PTFE / METAL GASKET
Special Requirements : (1) PTFE Lining / PTFE Coating (2) Capilary, Capilary with armour tube (3) Sealing Liquied - Silicon Oil/ Glycerin /Food Grade Oil / Syltherm
READ MORE Enquire now
FLANGED DIAPHRAGM SEAL EXTENDED NECK TYPE
MODEL-SSKE20-2
Pressure Ranges : -1 - 0 to 0-250 bar
Ingress Protection : 1/4" / 1/2" - BSP / NPT (F)
Process Connection : Extension Bar with Mounting Flange, Flange Size and Class as per Standard Requirement
Flange & Ext. Material : SS316/SS304/MONEL/INCONEL
Diaphragm : SS316L / Monel / Inconel / Hastelloy - C / PTFE / Tantalum
Special Requirements : (1) PTFE Coating (2) Capilary, capilary with armour tube (3) Sealing Liquied - Silicon Oil/ Glycerin /Food Grade Oil / Syltherm
READ MORE Enquire now
DIAPHRAGM SEAL FULL WELDED HEAVY DUTY MINI SEAL
MODEL-SSKE21
Pressure Ranges : -1 - 0, 0-1 to 0- 70 Bar (OD62.2 & OD 55) / 100 < 250 Bar (OD46.5) /250 <600 bar (OD34.5) / 600 < 1000 bar (OD 28 )
Top Chamber : SS316 / SS304
Bottom Chamber : SS316L / Monel / Inconel / Hastelloy- C
Diaphragm : SS316L / Monel / Inconel / Hastelloy - C / Tantalum
Process Connection : 1/4",3/8",1/2" - BSP /NPT- ( M /F) / Special Connections
Sealing Liquid : Silicon Oil / Glycerin / Food Grade Oil / Syltherm
Top & Bottom Chamber : Welded Construction
READ MORE Enquire now
THREADED DIAPHRAGM SEAL DIRECT COUPLED TYPE
MODEL-SSKE22-01
Pressure Ranges : 1 - 0, 0-1 to 0- 70 Bar (OD98) / 0-100 to 0-250 bar (OD80) / 0-250<0-400 bar(OD110)
Top Chamber : SS316 / SS304
Bottom Chamber : SS316L / Monel / Inconel / PVC
Diaphragm : SS316L / Monel400 / Inconel600 / Hastelloy - C 276 / Tantalum / PTFE
Process Connection : 1/4", 3/8", 1/2" - BSP /NPT- (M/F)
Sealing Liquid : Silicon Oil / Glycerin / Food Grade Oil / Syltherm
Option : Capilary, Capilary with Armour tube
Top & Bottom Chamber : Made from solid Bar / Forged Bar
READ MORE Enquire now
THREADED DIAPHRAGM SEAL SLIP RING COUPLED TYPE
MODEL-SSKE22-02
Pressure Ranges : -1 - 0, 0-1 to 0- 25 Bar
Top Chamber : SS316 / SS304
Bottom Chamber : SS316L / Monel / Inconel / PVC
Diaphragm : SS316L / Monel400 / Inconel600 / Hastelloy -C 276 / Tantalum / PTFE
Process Connection : 1/4", 3/8", 1/2" - BSP /NPT- (M /F)
Sealing Liquid : Silicon Oil / Glycerin / Food Grade Oil / Syltherm
Option : Capilary with Armour tube
Top & Bottom Chamber : Made from solid Bar with Steel Ring / SS / Metal Ring
READ MORE Enquire now
DIAPHRAGM SEAL FULL WELDED DIRECT COUPLED TYPE COMPACT DESIGN
MODEL - SSKE23
Pressure Ranges : -1 - 0, 0-1 to 0- 25 Bar
Top Chamber : SS316 / SS304
Bottom Chamber : SS316L
Diaphragm : SS316L
Process Connection : 1/4"- BSP / NPT- ( M /F)
Sealing Liquid : Silicon Oil / Glycerin / Food Grade Oil / Syltherm
Top & Bottom Chamber : Welded Construction
READ MORE Enquire now
THREADED DIAPHRAGM SEAL SCREWED FLUSH TYPE
MODEL- SSKE24
Pressure Ranges : 0-4 to 0- 600 Bar
Body : SS316 / SS316L
Diaphragm : SS316L
Process Connection : 1/4"/ 3/8''/1/2'' - BSP /NPT , (M /F)
Sealing Liquid : Silicon Oil / Glycerin / Food Grade Oil / Syltherm
Seal : Diaphragm Seal body made from one solid bar,
READ MORE Enquire now
SANITARY DIAPHRAGM SEAL CLAMP TYPE
MODEL-SSKE25
Pressure Ranges : 1 - 0 to 0- 40 Bar
Top Chamber : SS316L -1" (DN25) ,1.5" (DN40), 2" (DN50) - Triclamp Type
Instrument Connection : 1/4" / 1/2" - BSP / NPT (F)
Diaphragm : SS316L
Sealing Gasket : SILICON
Sealing Liquid : Food Grade Oil
Option : Suitable Size Triclamp, Bottom Matting Part & Gasket
READ MORE Enquire now
SANITARY DIAPHRAGM SEAL FLUSH DIAPHRAGM (FEMALE)
MODEL- SSKE26-01
Pressure Ranges : 1 - 0 to 0- 40 Bar
Top Chamber : SS316L -1" (DN25) ,1.5" (DN40), 2" (DN50)- Female Type
Union Nut : SMS / DIN -1" (DN25) ,1.5" (DN40), 2" (DN50)
Instrument Connection : 1/4" / 1/2" - BSP / NPT (F)
Diaphragm : SS316L
Sealing Gasket : SILICON
Seal Filling Liquid : Food Grade Oil
READ MORE Enquire now
SANITARY DIAPHRAGM SEAL FLUSH DIAPHRAGM (MALE)
MODEL- SSKE26-02
Pressure Ranges : 1 - 0 to 0- 40 Bar
Top Chamber : SS316L -1" (DN25) ,1.5" (DN40), 2" (DN50)- Male Type
Union Nut : SMS / DIN -1" (DN25) ,1.5" (DN40), 2" (DN50)
Instrument Connection : 1/4" / 1/2" - BSP / NPT (F)
Diaphragm : SS316L
Sealing Gasket : SILICON
Seal Filling Liquid : Food Grade Oil
READ MORE Enquire now
PULP SEAL, FLOATING RING TYPE
MODEL- SSKE27
Pressure Ranges : 0-4 to 0-40 bar Diaphragm
Chamber : SS316
Floating Ring : SS304
Instrument Connection : 1/4" / 1/2" - BSP / NPT (F)
Diaphragm : SS316L
Seal Filling Liquid : Silicon Oil
Options : Antivibration spring- Striaght / 90° Angle Type
READ MORE Enquire now
WAFER SEAL - PAN CAKE TYPE
MODEL- SSKE28-01
Pressure Ranges : 0-1 to 0-250 bar
Diaphragm Chamber : Suit to standard size flanges
MOC : SS316L
Diaphragm : SS316L / Monel400 / Inconel600 / Hastelloy -c 276
Instrument Connection : 1/4" / 1/2" - BSP / NPT (F)
Special Requirements : (1) Diaphragm with PTFE Coating (2) Seal with Capilary / armour tube /PVC armour Tube (3) Sealing Liquied - Silicon Oil / Glycerin / Syltherm
READ MORE Enquire now
WELD-IN DIAPHRAGM SEAL (SADDLE MOUNTING, ON PROCESS LINE)
MODEL- SSKE28-02
Pressure Ranges : 0-6 to 0-250 bar
Top Chamber : SS316/SS304
Bottom Chamber : As per Standard pipe size ( Weld on Pipe )
Instrument Connection : 1/4" / 1/2" - BSP / NPT (F)
Diaphragm : SS316L / Monel400 / Inconel600 / Hastelloy -C
Sealing Gasket : PTFE / METAL GASKET
Special Requirements : (1) PTFE Coating on diaphragm (2) Capilary with armour tube (3) Sealing Liquied - Silicon Oil/ Glycerin / Syltherm
READ MORE Enquire now
FLANGED DIAPHRAGM SEAL DIRECT FLANGED FLUSHED TYPE
MODEL-SSKE29-01
Pressure Ranges : -1 - 0 to 0-250 bar
Flange Size Class : As per standard
Flange Material : SS316/SS304/Monel / other
Instrument Connection : 1/4" / 1/2" - BSP / NPT (F)
Diaphragm : SS316L / Monel / Inconel / Hastelloy -C / PTFE / Tantalum
Special Requirements : (1) PTFE Coating on diaphragm (2) Capilary with armour tube (3) Sealing Liquied - Silicon Oil/ Glycerin / Syltherm
READ MORE Enquire now
FLANGED DIAPHRAGM SEAL DIRECT FLANGED WELDED TYPE
MODEL-SSKE29-02
Pressure Ranges : -1 - 0 to 0-250 bar
Flange Size Class : As per standard
Flange Material : SS316/SS304 / Monel / other
Instrument Connection : 1/4" / 1/2" - BSP / NPT (F)
Diaphragm : SS316L / Monel / Inconel / Hastelloy -C / PTFE / Tantalum
Special Requirements : (1) PTFE Coating on diaphragm (2) Capilary with armour tube (3) Sealing Liquied - Silicon Oil/ Glycerin / Syltherm
READ MORE Enquire now
FLANGED DIAPHRAGM SEAL DIRECT FLUSHED TYPE, ROTATABLE FLANGE
MODEL- SSKE29-03
Pressure Ranges : -1 - 0 to 0-250 bar
Flange Size Class : As per standard
Flange Material : SS316/SS304/Monel / other
Instrument Connection : 1/4" / 1/2" - BSP / NPT (F)
Diaphragm : SS316L / Monel / Inconel / Hastelloy -C / PTFE / Tantalum
Special Requirements : (1) PTFE Coating on diaphragm (2) Capilary with armour tube (3) Sealing Liquied - Silicon Oil/ Glycerin / Syltherm
READ MORE Enquire now
