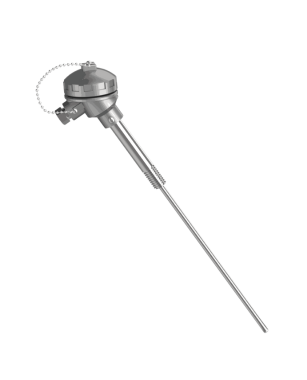

RTD - NIPPLE EXTENTION TYPE

MODEL- SSKE31-01

Element : PT-100 /500 / 1000, Class A / B

Range : -200 …. 400 / 600°C

Wire Combination : Simplex / Duplex , 2 Wire/3 Wire/4Wire

Sheath Material : SS316 /SS316L

Sheath Diameter : 3 / 5 / 6 / 8 /10 mm

Terminal Head Type : Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof /Atex.

Immersion Length : 50 mm upto 10000 mm

Process Connection : 1/2" / 3/4" - BSP / NPT, M20 (M)

Others : With Transmitter 4…20 Ma output,Terminal Block PCD -33 /46 mm, Single / Double Compression Gland, CE Certification

READ MORE Enquire now

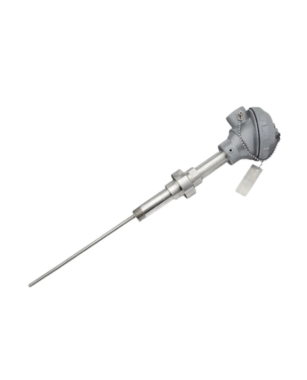

RTD NIPPLE UNION NIPPLE EXTENSION

MODEL- SSKE31-02

Element : PT-100 /500 / 1000, Class A / B

Range : -200 …. 400 / 600°C

Wire Combination : Simplex / Duplex , 2 Wire/3 Wire/4Wire

Sheath Material : SS316 /SS316L

Sheath Diameter : 3 / 5 / 6 / 8 /10 mm

Terminal Head Type : Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof /Atex.

Head Extension : Nipple Union Nipple Extention assembly in ASTM A105 ( plated )/SS304 /SS316

Head Extension Length(NUN) : 100 mm upto 250 mm

Immersion Length : 50 mm upto 10000 mm

Process Connection : 1/2" / 3/4" - BSP / NPT, M20 (M)

Others : With Transmitter 4…20 Ma output, Terminal Block PCD -33 /46 mm, Single / Double Compression Gland, CE Certification

READ MORE Enquire now

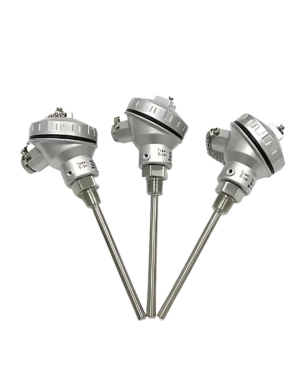

RTD FIXED THREADED CONNECTION

MODEL SSKE31-03

Element : PT-100 /500 / 1000 , Class A / B

Range : -200 …. 400 / 600°C

Wire Combination : Simplex / Duplex, 2 Wire/3 Wire/4Wire

Sheath Material : SS316 /SS316L

Sheath Diameter : 3 / 5 / 6 / 8 /10 mm

Terminal Head Type : Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof /Atex.

Immersion Length : 50 mm upto 10000 mm

Process Connection : 1/2" / 3/4" - BSP / NPT, M20 (M)

Others : With Transmitter 4…20 Ma output, Terminal Block PCD -33 /46 mm, Single / Double Compression Gland, CE Certification

READ MORE Enquire now

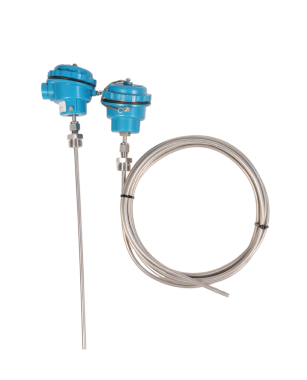

RTD ADJUSTABLE THREADED CONNECTION TYPE

MODEL- SSKE31-04

Element : PT-100 / 500 / 1000 , Class A / B

Range : -200 …. 400 / 600°C

Wire Combination : Simplex / Duplex , 2 Wire /3 Wire /4 Wire

Sheath Material : SS316 /SS316L

Sheath Diameter : 3 / 5 / 6 / 8 /10 mm

Terminal Head Type : Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof

Head Extension : Adjustable Connection

Immersion Length : 50 mm upto 10000 mm

Process Connection : 1/2" / 3/4" - BSP / NPT, M20

Others : With Transmitter 4…20 Ma output, Terminal Block PCD -33 /46 mm, Single / Double Compression Gland

READ MORE Enquire now

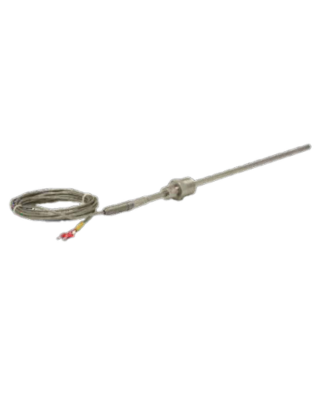

RTD -TRANSITION JOINT TYPE

MODEL- SSKE31-05

Element : PT-100 / 500 / 1000 , Class A / B

Range : -200 …. 400 / 600°C

Wire Combination : Simplex / Duplex , 2 Wire/3 Wire/4Wire

Sheath Material : SS316 / SS316L

Sheath Diameter : 3 / 5 / 6 / 6.35 / 8 mm

Head Extension : Adjustable Connection

Immersion Length : 50 mm upto 10000 mm

Process Connection : 1/2" / 3/4" - BSP / NPT, M20

Lead Wire Length : 1000 to 25000 mm

Lead Wire Type : PTFE / PTFE / SS Braided , CE Certification

READ MORE Enquire now

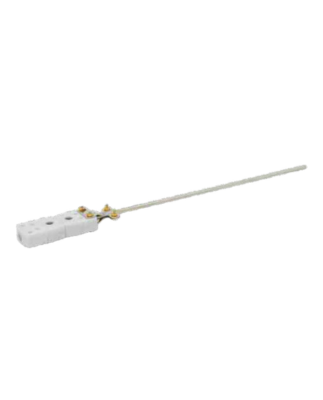

RTD PLUG AND JACK CONNECTOR TYPE

MODEL- SSKE31-06

Element : PT-100 / 500 / 1000 , Cla ss A / B

Range : -200 …. 400 / 600°C

Wire Combination : Simplex, 3 wire

Sheath Material : SS316 / SS304

Sheath Diameter : 3 / 5 / 6 / 6.35 / 8 mm

Lead Wire Connector : Plug and Jack Connection

Immersion Length : 50 mm upto 10000 mm

Process Connection : 1/2" / 3/4" - BSP / NPT, M20

Lead Wire Length : 1000 to 25000 mm

Lead Wire Type : PTFE / PTFE / SS Braided

READ MORE Enquire now

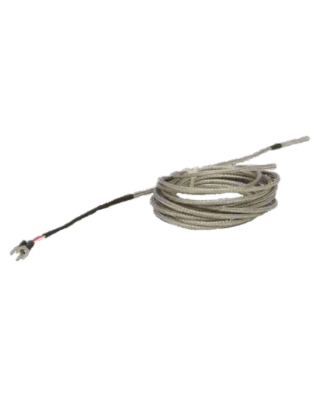

RTD - BEARING TYPE

MODEL - SSKE31-08

Element : PT-100 / 500 / 1000 , Class A / B

Range : -200 …. 400 / 600°C

Wire Combination : Simplex / Duplex , 2 Wire/3 Wire/4Wire

Sheath Material : SS316 / SS304

Sheath Diameter : 3 / 5 / 6 / 6.35 / 8 mm

Element Length : 10 mm upto 50 mm

Lead Wire Type : PTFE / PTFE / SS Braided /FG/FG

Lead Wire Length : 1000 to 25000 mm , CE Certification

READ MORE Enquire now

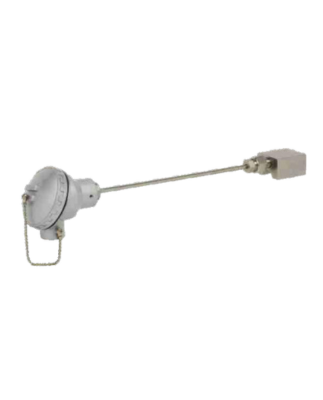

RTD WELD PAD /SURFACE MOUNTING

MODEL- SSKE31-09

Element : PT-100 / 500 / 1000 , Class A / B

Range : -200 …. 400 / 600°C

Wire Combination : Simplex / Duplex , 2 Wire/3 Wire/4Wire

Sheath Material : SS316 /SS316L / SS310

Sheath Diameter : 3 / 5 / 6 / 8 mm

Terminal Head Type : Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof

Head Extension : Adjustable Connection

Immersion Length : 50 mm upto 1000 mm

Process Connection : 1/2" / 3/4" - BSP / NPT, M20

Mounting : Local / No Bracket / with Bracket / 2" pipe mounting, Bracket / Surface Mounting

Weld Pad : Rectangle / Integral Collar

Others : With Transmitter, Terminal Block PCD -33 /46 mm, Single / Double Compression Gland

READ MORE Enquire now

RTD ASSEMBLY WITH TRI CLOVER CONNECTION

MODEL- SSKE31-12

Element : PT-100 / 500 / 1000 , Class A / B

Range : -200 …. 400 / 600°C

Wire Combination : Simplex / Duplex , 2 Wire / 3 Wire / 4Wire

Sheath Material : SS316 /SS316L / SS310

Sheath Diameter : 3 / 5 / 6 / 8 mm

Terminal Head Type : Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof

Terminal Head Material : Die cast Alumi / SS304 /SS316

Cable Entry : 3/4" ET/NPT, 1/2" NPT, M20

Head Extension : Adjustable Connection

Immersion Length : 50 mm upto 1000 mm

Process Connection : TRI CLAMP -1" /1.5"/ 2" /2.5''

Others : With Transmitter, Terminal Block PCD -33 /46 mm, Single / Double Compression Gland

READ MORE Enquire now
