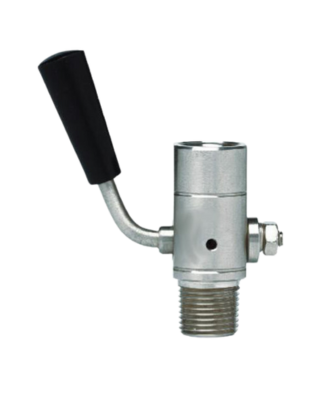

GAUGE COCK, ALL STAINLESS STEEL

MODEL- SSKE30-01

Type : 2 Way / 3 Way

Material : AISI316SS /AISI304SS

Instrument Connection : 1/2" NPT (F)[1/2" NPT (F) x 2 Nos for 3 Way]

Handle : AISI 304 SS with Backelite cover

Gaskets / Seals : PTFE

Maximum working pressure, temperature : 100 bar, 180°C

READ MORE Enquire now

SIPHON, ALL STAINLESS STEEL

MODEL- SSKE30-02

Type : Pig Tail , Q & U Type syphons

Material : SS316,SS316L SS304, CS, BRASS

Instrument Connection : 1/4" / 3/8" /1/2" , BSP / NPT (F)

Pipe Size & Schedule : 1/4" /3/8" /1/2" , 40/ 80 / 160

Connection Type : Threaded / Weld In / Flange end / Sanitary Connection

Maximum working pressure, temperature : As per PT chart

Options : Epoxy Coating / IBR Certification /Tag Plate

READ MORE Enquire now

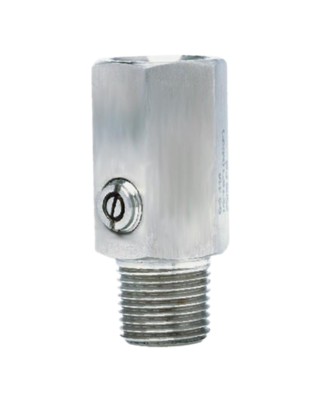

PULSATION DAMPENER/SNUBBER ADJUSTABLE NEEDLE TYPE

MODEL- SSKE30-03

Type : Flow Adjustable Screw

Material : SS304 / SS316 /SS316L / BRASS

Process Connection : 1/4"/3/8"/ 1/2", BSP /NPT (M)

Gaskets / Seals : Viton

Maximum working pressure, temperature : 400 bar , 180°C

READ MORE Enquire now

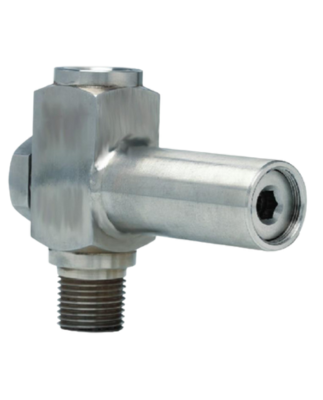

OVERLOAD PROTECTOR GUAGE SAVER

MODEL- SSKE30-04

Type : Bellow / Piston

Material : SS316 /SS316L / Monel

Process Connection : 1/4"/3/8"/ 1/2", BSP /NPT / M20 (M)

Gaskets / Seals : Viton

Maximum working pressure, temperature : 600 bar, 180°C

READ MORE Enquire now

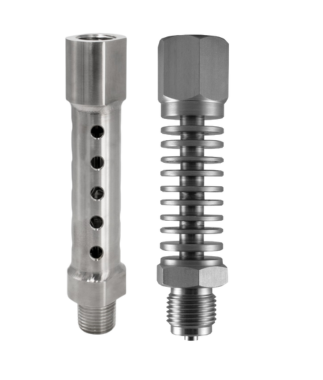

COOLING TOWER

MODEL- SSKE30-05

Type : Fin Type/ Perforated Type / Capillary Type

Material : SS316 /SS316L / Monel

Process Connection : 1/4"/3/8"/ 1/2", BSP /NPT / M20 (M)

Maximum working pressure, temperature: 1000 bar, 300°C

READ MORE Enquire now

COOLING TOWER

MODEL- SSKE30-06

Type : To suit all standard flange RF OD

Material Flange facing : Raised Face /RTJ

Flushing Port : 1/8" / 1/4" / 1/2"- Plugged

Maximum working pressure, temperature : As per Standard Flange Rating, 300°C

Options : Nipple / Needle / Gasket

READ MORE Enquire now
