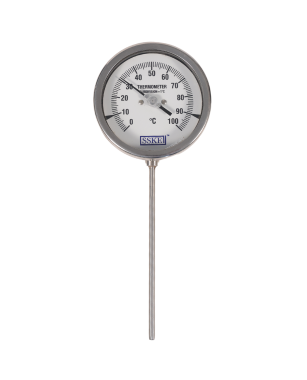

BIMETAL TEMPERATURE GAUGES

MODEL- SSKE50

Dial Size : DN40 / DN50 / DN63 / DN80 /DN100 / DN125 / DN150 / DN250

Temp. Range : -100 to 600°C

Accuracy : ± CL 1 , Ref EN13190

Mounting : 1/4" / 3/8" /1/2"-BSP / NPT, Bottom / Center Back / Every angle Clamp with External Zero Adjustment

Ingress Protection : IP65, Hermetically Sealed Encloser

Execution : Dry / Fillable

Sensing Element : Bimetal Helix

Case & Bezel : SS304/316, - Stem / Probe TIG welded with Case

READ MORE Enquire now

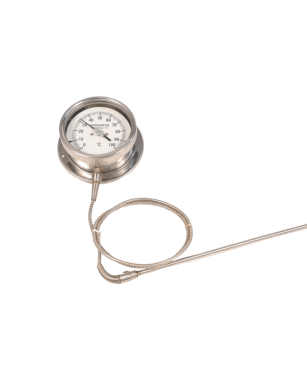

GAS FILLED TEMPERATURE GAUGES

MODEL- SSKE51

Dial Size : DN100 / DN125 / DN150 / DN250

Temp. Range : -100 to 650°C

Accuracy : ± CL 1, Ref EN13190

Mounting : 1/4",/3/8",/1/2"-BSP / NPT, Option with Anti Vibration spring, Bottom/Center Back/ External Zero Adjustment

Ingress Protection : IP65 , Options Hermetically Sealed Encloser

Execution : Dry / Fillable

Sensing Element : Bourdon Tube with Temperature Compensation

Case & Bezel : SS304/316, - Stem / Probe TIG welded with Case

READ MORE Enquire now

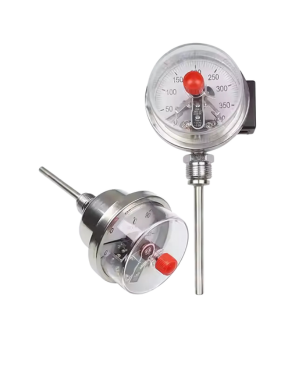

ELECTRIC CONTACT TEMPERATURE GAUGES -STD. GLASS

MODEL- SSKE53-1

Dial Size : DN100 / DN150, Window- standard Glass

Temp. Range : -100 to 650°C

Accuracy : ± CL 1

Standard : EN13190

Mounting : 1/4",/3/8",/1/2"-BSP / NPT, Option with Anti Vibration spring, Bottom/Center Back/External Zero Adjustment

Ingress Protection : IP65 , Hermetically Sealed Encloser

Execution : Dry / Fillable

Electric Contact : Magnetic / Inductive Contacts, NO,NC,SPST,DPDT,NONC

Sensing Element : Bourdon Tube with Temperature Compensation, H.V

Case & Bezel : SS304/316, - Stem / Probe TIG welded with Case

READ MORE Enquire now

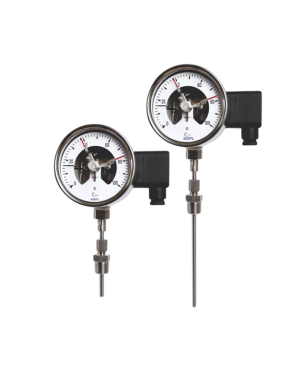

ELECTRIC CONTACT TEMPERATURE GAUGES - DOOM GLASS

MODEL- SSKE53

Dial Size : DN100 / DN150, Window- Doom Glass

Temp. Range : -100 to 650°C

Accuracy : ± CL 1, Ref EN13190

Mounting : 1/4",/3/8",/1/2"-BSP / NPT, Option with Anti Vibration spring, Bottom/Center Back/External Zero Adjustment

Ingress Protection : IP65 , Hermetically Sealed Encloser

Execution : Dry / Fillable

Electric Contact : Magnetic / Inductive Contacts, NO,NC,SPST,DPDT,NONC,

Sensing Element : Bourdon Tube with Temperature Compensation

Case & Bezel : SS304/316, - Stem / Probe TIG welded with Case

READ MORE Enquire now
