Thermowells
THREADED CONNECTION FABRICATED / WELDED
MODEL- SSKE33-01
Material Construction : SS304 / SS310 / SS316 / SS446 / INCONEL / MONEL/HASTELLOY-C
Process Connection : 1/2"/3/4"/1"/ 1.5" / 2" -BSP / NPT (M)
Bore Size : 7 / 9 / 10 / 12 / 16 mm in Seamless Pipe / Tube , 7x10, 7x12, 9x14,10x12,12x14, 12x16 mm , Pipe 1/8" , 1/4" 1/2" , 1" Sch.-40,80,160 in Fabricated Thermowell
Head Type : Hexagonal, Round
Insertion Length : 100 to 2000 mm
READ MORE Enquire now

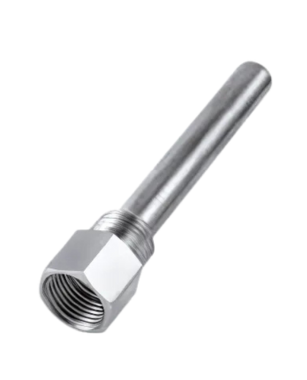

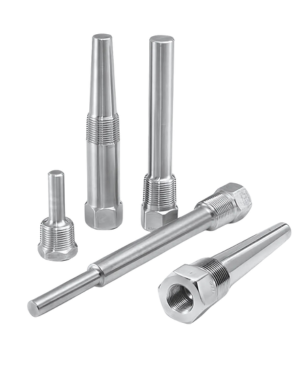

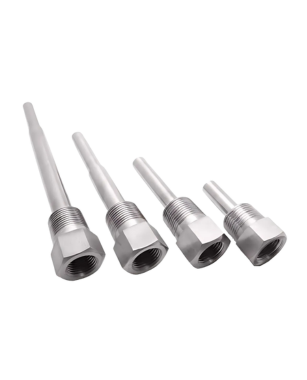

THREADED CONNECTION BARSTOCK
MODEL- SSKE33-02
Material Construction : SS304 / SS310/ SS316 /SS446/INCONEL /MONEL/HASTELLOY-C
Process Connection : 1/2" / 3/4" / 1" / 1.5" / 2" -BSP / NPT (M)
Bore Size : 6.6 / 7 / 8.5 / 9.6 / 11 / 13 mm in Bar stock Thermowell
Head Type : Hexagonal, Round
Extension Length : 45mm / 50mm / special requirement
Insertion Length : Round Type Upto 1000 mm / Hex Type: Upto 300 mm
Other Options : Wake Frequency Calculation, Shank surface coating / Lining / Sleeve
READ MORE Enquire now

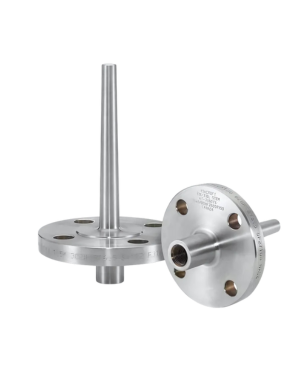

THERMOWELL WITH FLANGE FABRICATE TYPE
MODEL- SSKE33-03
Material Construction : SS304 / SS310 / SS316 / SS446 / INCONEL / MONEL/HASTELLOY-C
Instrument Connection : 3/8" / 1/2" / 3/4" / 1" -BSP /NPT (F)
Process Connection : Standard Flanges
Bore Size : 7 / 9 / 10 / 12 / 16 mm in Seamless Pipe / Tube , 7x10, 7x12, 9x14,10x12,12x14, 12x16 mm , Pipe 1/8" , 1/4" 1/2" , 1" Sch.- 40, 80, 160 in Fabricated Thermowell
Head Type : Round
Insertion Length : Round Type Upto 2000 mm
Other Options : Shank surface coating / Lining / Sleeve
READ MORE Enquire now

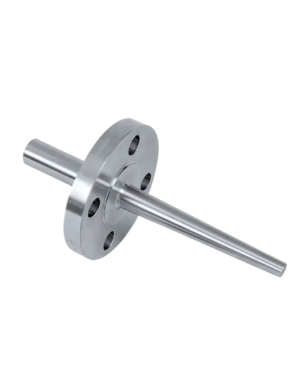

THERMOWELL WITH FLANGE BAR STOCK TYPE
MODEL- SSKE33-04
Material Construction : SS304 / SS310 / SS316 / SS446 / INCONEL / MONEL/HASTELLOY-C
Instrument Connection : 3/8" / 1/2" / 3/4" / 1" -BSP /NPT (F)
Process Connection : Standard Flanges
Bore Size : 6.6 / 7 / 8.5 / 9.6 / 11 / 13 mm in Bar stock Thermowell
Head Type : Round
Insertion Length : Round Type Upto 1000 mm
Other Options : Wake Frequency Calculation, Shank surface coating / Lining / Sleeve
READ MORE Enquire now
THERMOWELL -VAN STONE BAR STOCK TYPE
MODEL- SSKE33-05
Material Construction : SS304 / SS310 / SS316 / SS446 / INCONEL / MONEL/HASTELLOY-C
Instrument Connection : 3/8" / 1/2" / 3/4" / 1" -BSP /NPT (F)
Process Connection : Suitable to Standard Flanges
Bore Size : 6.6 / 7 / 8.5 / 9.6 / 11 / 13 mm in Bar stock Thermowell
Head Type : Round
Insertion Length : Round Type Upto 1000 mm
Other Options : Wake Frequency Calculation, Shank surface coating / Lining / Sleeve
READ MORE Enquire now
