Thermocouples

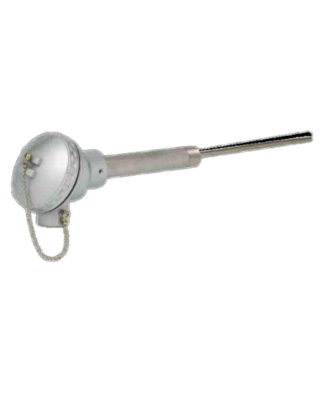

THERMOCOUPLE NIPPLE EXTENSION
MODEL- SSKE32-01
Element : Type - K / J / T / N / E
No. of Sensors , Hot Junction : Simplex / Duplex , Ungrounded / Grounded
Sheath Material : SS316 /SS316L / SS310 / INCONEL 600 /SS446
Sheath Diameter : 3 / 5 / 6 / 8 mm
Terminal Head Type : Threaded Cover / Hinged / 2 screwed / Weather IP65/66/68 / Flame Proof / Explosion Proof / Atex
Immersion : 50 mm upto 1000 mm
Process Connection : 1/2" / 3/4" - BSP / NPT, M20
Others : With Transmitter, Terminal Block PCD -33 /46 mm, Single / Double Compression Gland, CE Certification.
READ MORE Enquire now

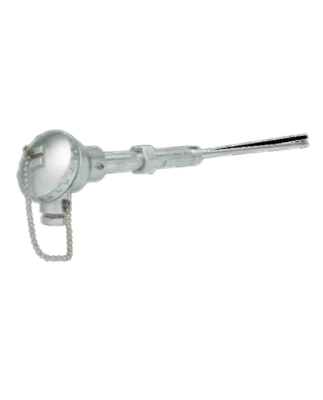

THERMOCOUPLE NIPPLE UNION NIPPLE EXTENSION (NUN)
MODEL- SSKE32-02
Element : Type-K / J / T / N /E
No. of Sensors, Hot Junction : Simplex / Duplex , Ungrounded / Grounded
Sheath Material : SS316 /SS316L / SS310 / INCONEL 600 /SS446
Sheath Diameter : 3 / 5 / 6 / 8 mm
Terminal Head Type : Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof / Atex
Immersion : 50 mm upto 1000 mm
Process Connection : 1/2" / 3/4" - BSP / NPT, M20
Others : With Transmitter,Terminal Block PCD -33 /46 mm, Single / Double Compression Gland, CE Certification.
READ MORE Enquire now

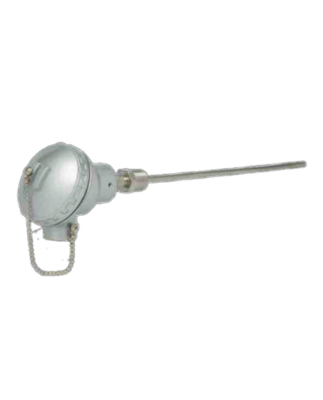

THERMOCOUPLE FIXED THREADED TYPE
MODEL- SSKE32-03
Element : Type-K / J / T / N /E
No. of Sensors, Hot Junction : Simplex / Duplex , Ungrounded / Grounded
Sheath Material : SS316 /SS316L / SS310 / INCONEL 600/SS446
Sheath Diameter : 3 / 5 / 6 / 8 mm
Terminal Head Type : Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof / Atex
Immersion : 50 mm upto 1000 mm
Process Connection : 1/2" / 3/4" - BSP / NPT, M20
Others : With Transmitter, Terminal Block PCD -33 /46 mm, Single / Double Compression Gland, CE Certification.
READ MORE Enquire now

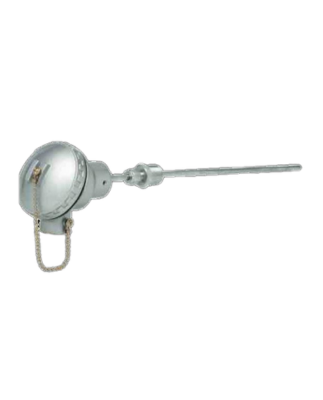

THERMOCOUPLE ADJUSTABLE THREADED TYPE
MODEL- SSKE32-04
Element : Type-K / J / T / N /E
No. of Sensors, Hot Junction : Simplex / Duplex , Ungrounded / Grounded
Sheath Material : SS316 /SS316L / SS310 / INCONEL 600/SS446
Sheath Diameter : 3 / 5 / 6 / 8 mm
Terminal Head Type : Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof / Atex
Immersion : 50 mm upto 1000 mm
Process Connection : 1/2" / 3/4" - BSP / NPT, M20
Others : With Transmitter, Terminal Block PCD -33 /46 mm, Single / Double Compression Gland, CE Certification.
READ MORE Enquire now

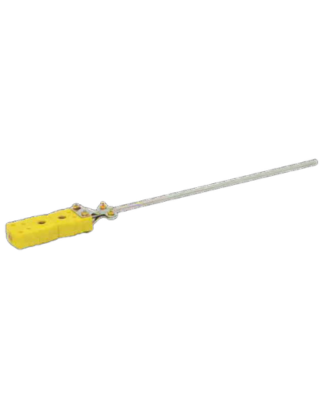

THERMOCOUPLE - PLUG JACK TYPE
MODEL- SSKE32-06
Element : Type-K / J / T / N /E
Accuracy : Standard to IEC 584 & ANSI MC96.1
No. of Sensors, Hot Junction : Simplex, Ungrounded / Grounded
Sheath Diameter : 3 / 5 / 6 / 8 mm
Cold End Terminal : Standard Plug & Jack Connector
Lead Wire Type : PTFE / PTFE / SS Braided
Immersion Length : 50 mm upto 10000 mm
READ MORE Enquire now

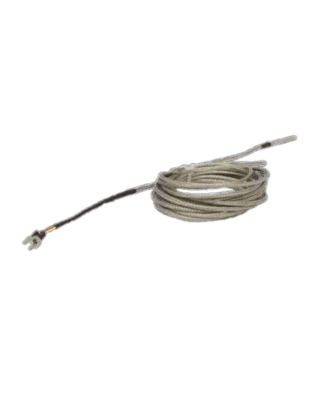

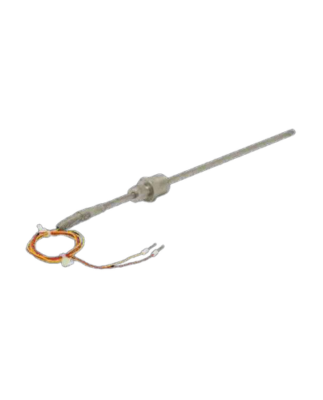

THERMOCOUPLE TRANSITION JOINT TYPE
MODEL- SSKE32-07
Element : Type-K / J / T / N /E
Accuracy : Standard to IEC 584 & ANSI MC96.1
No. of Sensors, Hot Junction : Simplex / Duplex, Ungrounded / Grounded
Sheath Diameter : 3 / 5 / 6 / 8 mm Lead
Wire Length : 1000 to 25000 mm Lead
Wire Type : PTFE / PTFE / SS Braided
Immersion Length : 50 mm upto 10000 mm
READ MORE Enquire now
THERMOCOUPLE BEARING TEMPERATURE TYPE
MODEL- SSKE32-08
Element : Type-K / J / T / N /E
Accuracy : Standard to IEC 584 & ANSI MC96.1
No. of Sensors, Hot Junction : Simplex / Duplex, Ungrounded
Sheath Diameter : 3 / 5 / 6 / 8 mm
Lead Wire Length : 1000 to 25000 mm
Lead Wire Type : PTFE / PTFE / SS Braided /FG/FG
Element Length : 10 mm upto 50 mm
READ MORE Enquire now

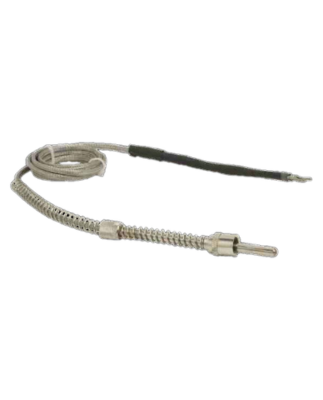

THERMOCOUPLE SPRING LOADED BAYONET FITTINGS
MODEL- SSKE32-10
Element : Type-K / J / T / N /E
Accuracy : Standard to IEC 584 & ANSI MC96.1
No. of Sensors, Hot Junction : Simplex / Duplex, Ungrounded
Sheath Diameter : 3 / 4.5 / 6.35 / 8 mm
Lead Wire Type : PTFE / PTFE / SS Braided /FG/FG
Immersion Length : 10 mm upto 200 mm
Process Connection : Bayonet ID 12 / 14 mm
Mounting Type : Straight / 90 Angular / Button Type
READ MORE Enquire now

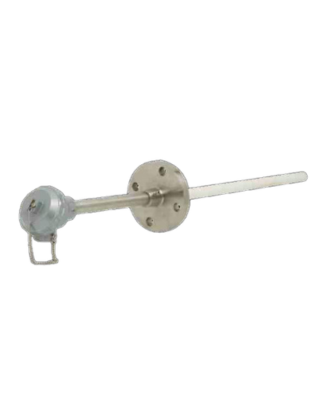

THERMOCOUPLE CERAMIC PROTECTION TUBE WITH FLANGE CONNECTION
MODEL- SSKE32-13
Element : Type-K / J / K / N / R / S / B Mineral insulated / Element with ceramic insulator
No. of Sensors, Hot Junction : Simplex / Duplex, Ungrounded / Grounded
Sheath Material : INCONEL 600 / CERAMIC
Sheath Diameter : 3 / 5 / 6 / 8 /10 / 12 mm
Terminal Head Type : Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof
Process Connection Type : Adjustable / Fixed Flange
Immersion : 100 mm upto 1000 mm
Process Connection : Standard Flanges
Support Tube Material : SS316/ SS316L /SS310 / INCONEL / SS446
Inner Protection Tube Material, Size : KER - 610, Pythagoras / KER - 710, Recrystallised Alumina, 6X1, 8X1.5 / 10X2, 12X2 mm
Outer Protection Tube Material, Size : KER - 610, Pythagoras / KER - 710, Recrystallised Alumina,Kanthai AF , Kanthai APM, lnconel600, X1, 8X1.5/ 10X2, 12X2,15X2.5,20X2.5, 24X3
Others : With Transmitter, Terminal Block PCD -33 /46 mm, Single / Double Compression Gland
READ MORE Enquire now

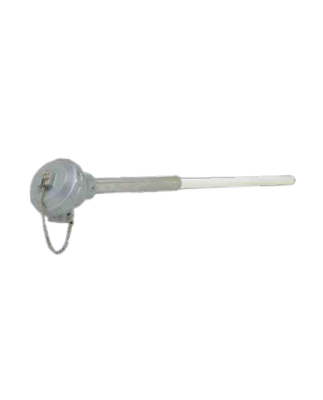

THERMOCOUPLE CERAMIC PROTECTION TUBE WITH THREADED CONNECTION
MODEL- SSKE32-14
Element : Type-K / J / K / N / R / S / B Mineral insulated / Element with ceramic insulator
No. of Sensors, Hot Junction : Simplex / Duplex , Ungrounded / Grounded
Sheath Material : INCONEL 600 / CERAMIC
Insulator Diameter : 3 / 5 / 6 / 8 /10 / 12 mm
Terminal Head Type : Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 /Flame Proof / Explosion Proof
Process Connection Type : Adjustable / Fixed Connection
Immersion : 100 mm upto 1000 mm
Process Connection : 1/2" / 3/4"/ 1" / 1.5" / 2" - BSP / NPT, M20
Support Tube Material : SS316/ SS316L /SS310 / INCONEL / SS446
Inner Protection Tube Material, Size : KER - 610, Pythagoras / KER - 710, Recrystallised Alumina, 6X1, 8X1.5 / 10X2, 12X2 mm
Outer Protection Tube Material : KER - 610, Pythagoras / KER - 710, Recrystallised Alumina,Kanthai AF , Kanthai APM, lnconel600
Outer Protection Tube Size : 6X1, 8X1.5/ 10X2, 12X2,15X2.5,20X2.5, 24X3,
Others : With Transmitter, Terminal Block PCD -33 /46 mm, Single /Double Compression Gland
READ MORE Enquire now

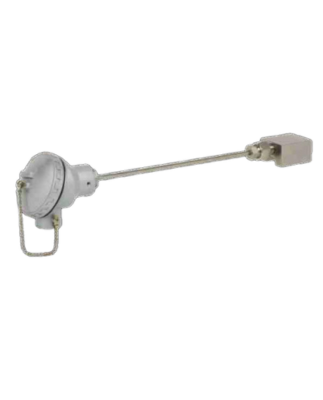

THERMOCOUPLE - WELD PAD MOUNTING TYPE (SKIN TYPE)
MODEL- SSKE32-15
Element : Type-K / N
Accuracy : Standard to IEC 584 & ANSI MC96.1
No. of Sensors : Simplex / Duplex
Hot Junction : Ungrounded / Grounded
Sheath Material : SS316 /SS316L / SS310 / INCONEL 600
Sheath Diameter : 3 / 5 / 6 / 8 mm
Terminal Head Type : Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof
Terminal Head Material : Die cast Aluminium / SS304 /SS316
Cable Entry : 3/4" ET/NPT, 1/2" NPT , M20
Head Extension : Adjustable Connection
Immersion : 50 mm upto 1000 mm
Process Connection : 1/2" / 3/4" - BSP / NPT, M20
Mounting : Local / No Bracket / with Bracket / 2" pipe mounting Bracket / Surface Mounting
Weld Pad : Rectangle / Integral Collar
Others : With Transmitter, Terminal Block PCD -33 /46 mm, Single /Double Compression Gland
READ MORE Enquire now

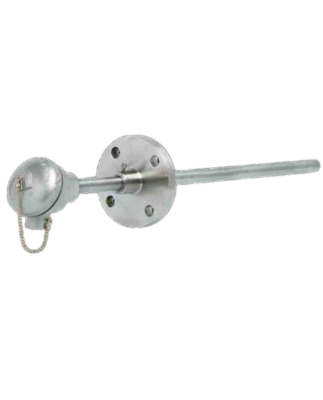

THERMOCOUPLE THREADED / FLANGE TYPE
MODEL- SSKE32-18
Element : Type-K / J / N / R / S / B Mineral insulated / Element with ceramic insulator
Accuracy : Standard to ISA &ANSI MC96.1
No. of Sensors : Simplex / Duplex
Hot Junction : Ungrounded / Grounded
Sheath Material : INCONEL 600 / SS316
Sheath Diameter : 3 / 5 / 6 / 8 /10 / 12 mm
Terminal Head Type : Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof
Terminal Head Material : Die cast Aluminium / SS304 /SS316
Cable Entry : 3/4" ET/NPT, 1/2" NPT , M20,
Immersion : 50 mm upto 1500 mm
Process Connection : Standard Flanges - Adjustable / Fixed Type
Head Extension Type : Head with female threading
Protection Tube : SS316/ SS346 / SS310 / SS316L / lnconel600
Protection Tube Size : 10X1.5 /12X1.5 / PIPE 3/8" / PIPE 1/2" / PIPE 3/4"-SCH. 40 / SCH 80
Others : With Transmitter, Terminal Block PCD -33 /46 mm,Single / Double Compression Gland
READ MORE Enquire now
