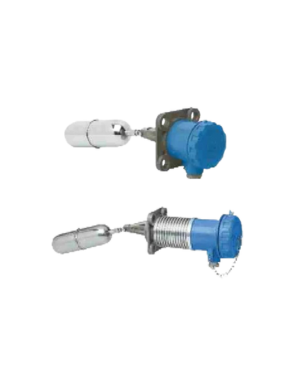

SS FLOAT, SIDE MOUNTED

MODEL- SSKE37

Mounting : SIDE

Type : General Purpose / Sanitary

Operating Pressure & Temp : 12 Bar , -10°C …. 100°C

Switch Points : 1No / 2 Nos / 3Nos / 4 Nos

Process Connection : 1" BSP / NPT / Standard Flanges

Switch Type : 1SPST & 1SPDT

Insertion Length : 150 mm …. 3000 mm

Enclosure Protection : Die Cast Aluminium / SS304, also with surface coating - Epoxy Painting

Wetted Parts Protection : Non Magnetic SS316 , Surface coating - PVDF / PTFE

READ MORE Enquire now

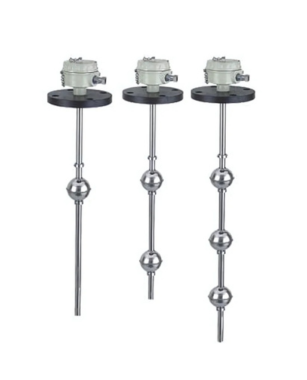

SS FLOAT, TOP MOUNTED

MODEL- SSKE38

Mounting : TOP

Operating Pressure & Temp : 12 Bar , -10°C …. 100°C

Process Connection : 1" BSP / NPT / Standard Flanges

Wetted Parts : SS316

Ingress Protection : Weather Proof / Flame Proof / Ex-Proof

Switch Type : 1SPST & 1SPDT , 1No / 2 Nos / 3Nos / 4 Nos

Enclosure Protection : Die Cast Aluminium / SS304, also with surface coating Epoxy Painting

READ MORE Enquire now

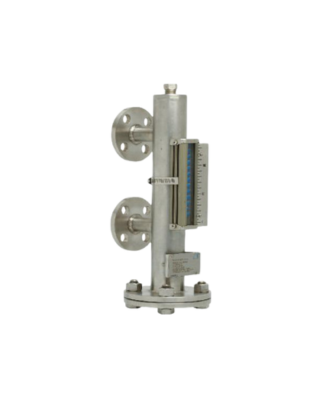

MAGNELIC LEVEL GAUGE BI COLOUR

MODEL- SSKE39

Mounting : REAR / SIDE / TOP SIDE

Operating Pressure & Temp : 10bar / 25 bar / 50 Bar / 80 Bar /100 Bar , -20 ... 120°c / -20 …300°c

Process Connection : 1/2" ….. 1" NPT / Standard Flanges / Weld in

Indicator : Rolling Flappers - Blue & White / Red & White

Scale : Aluminium / SS304 /SS316

Options : Switches -1SPDT , Switch Points -1 / 2 / 3 / 4 Nos / Transmitter /Valve

READ MORE Enquire now

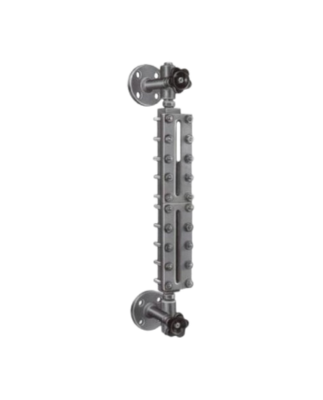

GLASS LEVEL GAUGE - REFLEX & TRANSPARENT

MODEL- SSKE40-02

Mounting : LEFT SIDE / RIGHT SIDE / REAR SIDE / TOP SIDE

Operating Pressure & Temp : 20bar / 35 bar / 65 Bar / 80 Bar / 100 Bar / 200 Bar , -20 ... 120°C / 240°C / 300°C

Process Connection : 1/2" ….. 1" NPT / Standard Flanges / Weld in

Indicator : Gauge Glass - Klinger / Borosilicate

Wetted Parts : SS304 / SS316 / CS105

Distance Center to Center : 250 mm …. 6000 mm

Scale : Aluminium / SS304 /SS316

Least Count : As per requirement

Options : Anti frost protection, Illuminator with diffuser, Needle / ball Valves / FLANGES with Vent or Drain Port /Auto shut of valve

READ MORE Enquire now

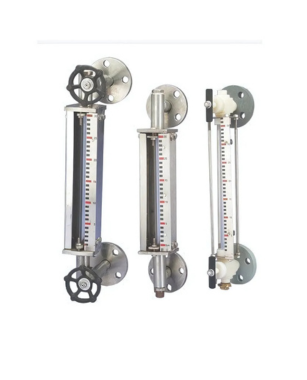

GLASS LEVEL GAUGE -TUBULAR

MODEL- SSKE41-01

Mounting : REAR SIDE / LEFT SIDE / RIGHT SIDE / TOP SIDE

Operating Pressure & Temp : Upto 10 Bar , -10 ... 100°C

Process Connection : 1/2" ….. 1" BSP/ NPT / Standard Flanges

Indicator : Borosilicate Glass Tube / Plexi Glass

Wetted Parts : SS304 / SS316 / CS105

Distance Center to Center : 150 mm …. 2000 mm

Scale : Aluminium / SS304 /SS316

Options : Drain / Vent with ball Valves

READ MORE Enquire now

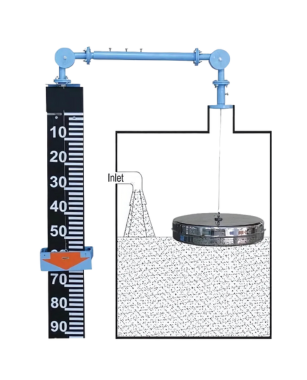

FLOAT AND SCALE LEVEL GAUGE

MODEL- SSKE41-02

Mounting assemblies (2 x pulley systems) : Cadmium plated steel pulley with PTFE bush and SS shaft housed In weatherproof enclosure

Operating Pressure & Temp : Upto 5 Bar , -10 ... 80°C

Process Connection : Standard Flanges

Float Material & Size : AlS1316 SS / ?200 mm for up to 7.5 Meters / AISI316 SS /?350 mm for up to 20 Meters

Measuring Ranges : 3 meter …. 20 meter

Scale : Aluminium / SS with coating

Float / Guide Wire Ropes : AISI 316 SS / AISI 304 SS (0 1.6 mm • multistard)

Options : Ancer Plate for float guide

READ MORE Enquire now

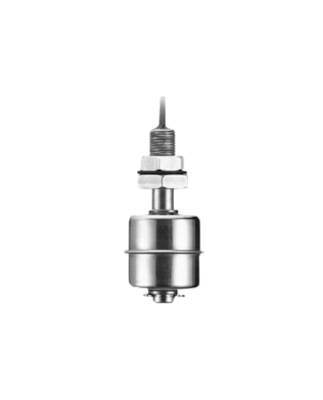

LEVEL SWITCH, MINIATURE, SS, SIDE/TOP MOUNTED MINIATURE LEVEL SWITCH

MODEL- SSKE42-01

Mounting : SIDE / TOP

Type : Side Mounted / Top Mounted

Specific Gravity : 0.8

Operating Pressure & Temp : 4 bar … 10 Bar, -10 …. 180°C

Process Connection : 1/4" ….. 1" BSP / NPT

Switch Type & Rating : 1SPDT / 2 SPDT, 0.5A /230VAC-Reed switch

READ MORE Enquire now

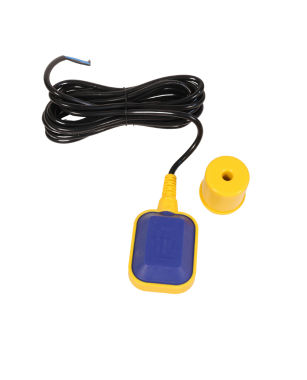

CABLE FLOAT LEVEL SWITCH

MODEL- SSKE42-02

Mounting : TOP

Material of Float : POLYPROLINE

Operating Pressure & Temp : Max 4 Bar , -10 …. 60°C

Ingress Protection : IP68

Switch Type & Rating : 1SPDT, 5A / 250 VAC -Micro Switch

Cable Material & Set Points : PVC / 5 Points

Cable Length : 300 mm ………upto 25 meter

READ MORE Enquire now
